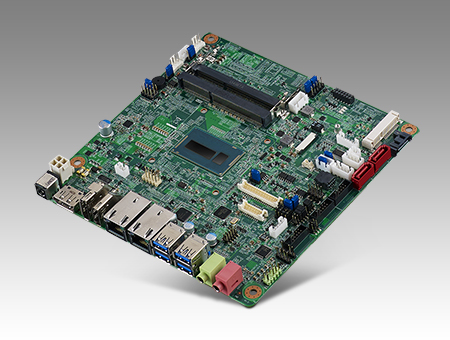

AIMB-231

Intel® Core™ i5-5350U/ i3-5010U Mini-ITX with LVDS(eDP)/DP(HDMI)/DP++, 2 COM, and Dual LAN

Main Features

Intel® Core™ i5-5350U/ i3-5010U processor (Dual core), 15W TDP, BGA 1168 (MCP) 14nm Processor
Two 204-pin SO-DIMM up to 16 GB DDR3L 1600 MHz SDRAM

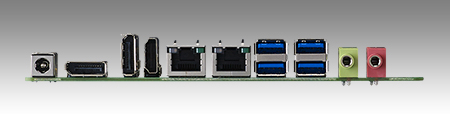

Multiple display I/O supports versatile Tri display functions for eDP/LVDS, DP/HDMI, and DP++
Realtek ALC892 supports 7.1 + 2 channel HD audio
Dual Intel i218/i210 Gigabit LAN
1 Full-sized Mini-PCIe, 1 Half-sized Mini-PCIe,1 SIM Card Holder
2 COM, 3 SATA III, 1 mSATA
4 USB 3.0, 2 USB 2.0
数据表(PDF) 技术资料下载

规格表

Intel® Core™ i5-5350U/ i3-5010U Mini-ITX with LVDS(eDP)/DP(HDMI)/DP , 2 COM, and Dual LAN
