AIMB-B2000-00YE |
AIMB-B2000-15ZE |
| Audio |
Chipset |
ALC888-VC |
|
| Environment |
Operating Temperature |
0 ~ 40° C (32 ~ 104° F) |
|
| Ethernet |
Interface |
10/100/1000 Mbps |
|
| Expansion |
Mini PCIe |
1 |
|
| Front I/O Interface |
Antenna |
1 |
|
| Audio |
1 |
|
| COM |
1 (1xRS-232) |
|
| USB |
2 |
|
| Graphics |
Chipset |
HD Graphics |
|
| Miscellaneous |
Control |
Power switch (Push-on/off type) |
|
| LED Indicators |
Power & HDD |
Power & HDD |
| Power Requirement |
Power Consumption |
10W (Idle), 37W (maximum without expansion) |
|
| Processor |
Compatible Motherboard |
AIMB-201 |
|
| CPU TDP |
10 |
|

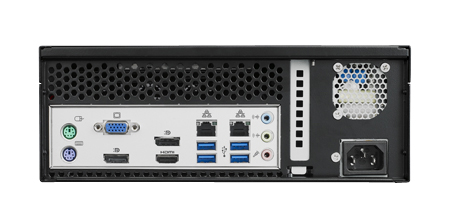

| Rear I/O Interface |
Antenna |
1 |
|
| Audio |
3 (Mic-In, Line-Out, Line-in) |
|
| COM |
2 (1 x RS-232, 1 x RS-232/422/485) |
|
| DP++ |
1 |
|
| Ethernet |
1 |
|
| HDMI / DisplayPort* |
1 |
|
| USB |
4 |
|
| VGA |
1 |
|
| Storage |
2.5" Drive Bay |
1 x 2.5” HDD/SSD Bay (Max Height 9.5mm) |
|
| Thermal Solution |
Thermal Solution |
FAN |
|
| Form Factor |
Board |
|
Mini ITX MB |
| Processor |
CPU |
Base on motherboard |
|
| Drive Bay |
3.5" (int) |
|
0 |
| 5.25" |
|
0 |
| 3.5" (ext) |
|
0 |
| Processor |
Chipset |
Base on motherboard |
|
| Drive Bay |
Slim ODD and 2.5" HDD |
|
2.5" HDD*2 or 2.5" HDD*1 + slim ODD*1 |
| Miscellaneous |
Reset Button |
|
1 |
| Power Switch |
|
1 |
| Expansion |
PCI Express x 16 |
|
1 (maximum:25W for low profile PCIe card) |
| Environment |
Vibration (5 ~ 500 Hz) |
|
1 Grms (HDD*1+ODD*1); 0.5Grms (HDD*2) |
| Shock Protection |
|
10G (with 11ms duration, half sine wave) |
| Rear I/O Interface |
Power Input |
DC-in Jack |
|
| Cooling |
Fan |
|
2 (7cm/39.45CFM each) |
| Power Requirement |
Voltage |
Base on IMB |
|
| Environment |
Temperature (Operating) |
|
0 ~ 40°C (32 ~ 104°F) |
| Non-Operational Temperature |
-20 ~ 60° C (-4 ~ 140° F) |
|
| Temperature (Storage) |
|
-20 ~ 60° C (-4 ~ 140° F) |
| Humidity |
10 ~ 85% @ 40° C, non-condensing |
10 ~ 85% @ 40° C, non-condensing |
| Vibration Resistance |
Random 5-500Hz, 1hr/axis |
|
| Physical |
Weight |
|
3.8 kg |
| Dimensions |
Dimensions (W x H x D) |
250 x 35 x 190 mm (9.84" x 1.38" x 7.48") |
|
| Physical |
Dimension (mm) |
|
250 x 98 x 255 mm (10.04" x 3.86" x 9.84") |
| Reserved Opening |
USB |
|
4 |
| Serial |
|
4 |
| WLAN Antenna |
|
2 |
| Expansion slot |
|
1 (low profile) |
| Weight (kg) |
Weight (kg) |
2.12 Kg |
|
